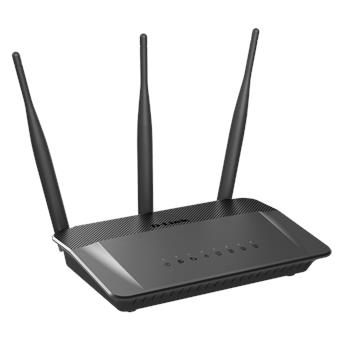

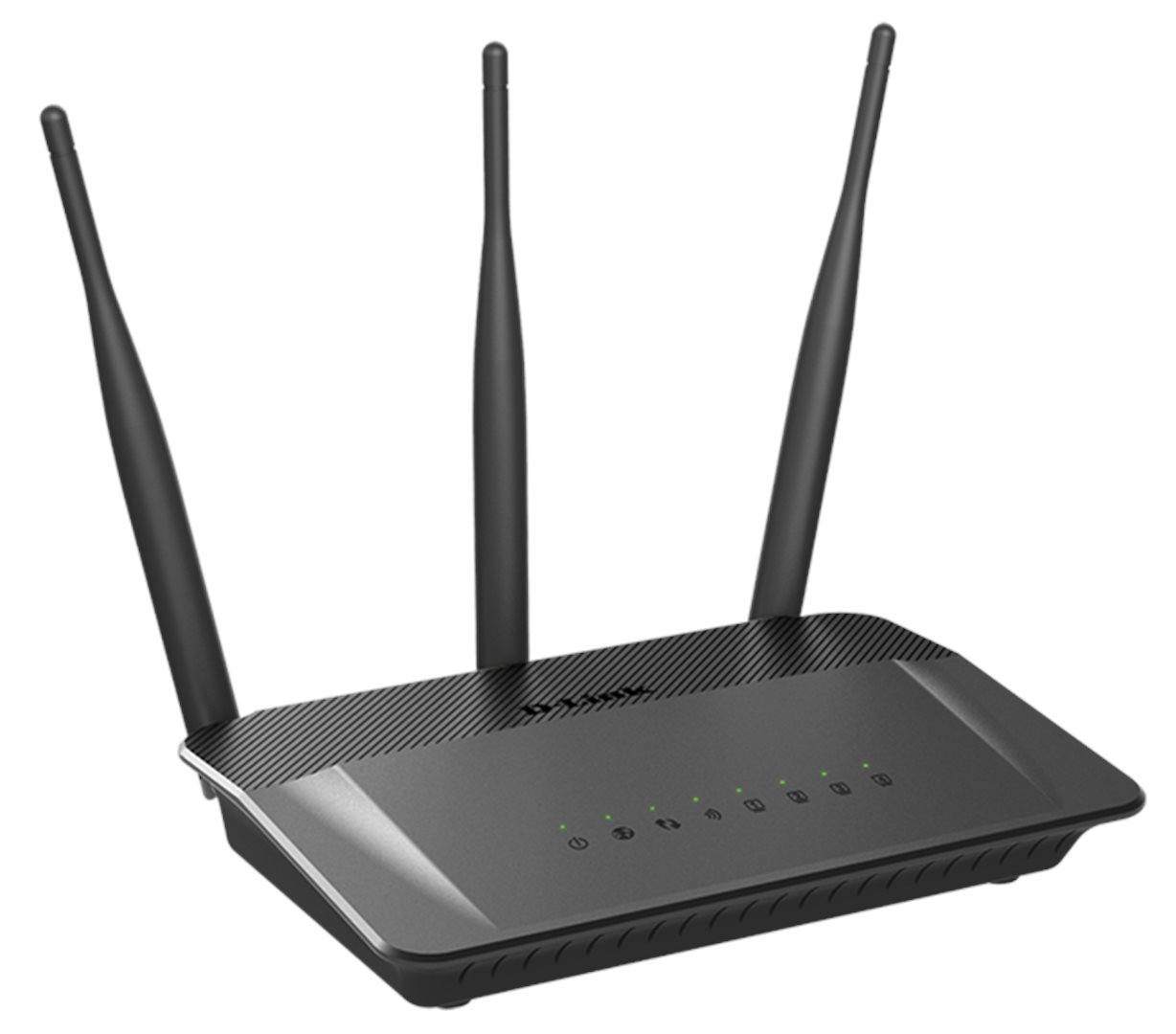

D-Link DIR-809/ E WiFi AC750 DualBand 10/ 100 Router

PŘEHLED

The DIR-809 Wireless AC750 Dual Band Router uses the latest high-speed wireless technology to bring you lightning-fast Wi-Fi speeds of up to 433 Mbps on the 5 GHz frequency band and 300 Mbps on the 2.4 GHz frequency band.

TECHNICKÁ SPECIFIKACE

Device Interfaces

• IEEE 802.11ac wireless LAN1
• IEEE 802.11 a/b/g/n wireless LAN
• 10/100 fast Ethernet Internet port
• Four 10/100 fast Ethernet LAN ports

LEDs

• Power
• Internet
• WLAN
• LAN (x4)
• WPS

Antenna Type

• Three fixed external antennas

Operating Frequency

• 2.4 GHz band: 2400 - 2483.5 MHz
• 5 GHz band: 5150 - 5725 MHz

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3u

Minimum Requirements

• Internet Explorer 9, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem
• Subscription with an Internet Service Provider

Functionality
Security

• WPA & WPA2 (Wi-Fi Protected Access)
• WPS (Wi-Fi Protected Setup)

Advanced Features

• Web setup wizard
• DMZ (Demilitarized Zone)
• Firewall - Network Address Translation (NAT)
• Wireless Repeater

Physical
Dimensions

• 190 x 133 x 83 mm

Weight

• 228.6 grams

Power

• Input: 100 to 240 V AC, 50/60 Hz

Temperature

• Operating: 0 to 40 °C
• Storage: -20 to 65 °C

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• ANATEL
• NCC
• CCC
• BSMI
